Marine
Pumps
In the demanding world of offshore and marine port operations where cable laying, trenching, and ballast management are paramount, the efficiency and reliability of your pumping solutions directly impact project success. Pioneer Pump Solutions provides a comprehensive range of marine pumps renowned for their unwavering reliability. Each pump is housed within robust canopies which provide protection against corrosive sea spray and other environmental elements.
We specialise in high-flow, high-pressure pumps that are critical for optimising the speed of trenching and increasing the operational depth for cable laying, directly contributing to project timelines and cost-effectiveness.
We understand the inherent challenges of harsh marine environments; so our pump solutions are not just about equipment - they are about engineering support. Every hire contract comes with 24/7 technical support, and our advanced telemetry system allows for remote monitoring, adjustments and updates – all with minimal downtime.
Key Features
- Superior reliability for harsh marine environments
- High flow rates to allow for faster operations
- High pressure to allow for greater depths
- Exceptional equipment flexibility via full hire fleet
- 24/7 expert operational support
- Proven expertise in high-stakes marine operations
- Solutions engineered for mission-critical continuity
- Telemetry for remote diagnostics and reporting
Typical
Datasheets
These datasheets represent a selection of our commonly requested pumpsets for marine applications and are intended to provide a general overview of what we offer.
Please note that this is not an exhaustive list - our full product range includes additional models and configurations to suit a variety of requirements.
DOWNLOAD THE DATASHEETS FOR MORE INFORMATION ON OUR PRODUCTS
300SM-EVO
A high-flow 12x12" pump moving up to 2150m³/h with 66m head and 3.5" solids handling. It runs on a 311 HP Scania engine, providing excellent solids handling and durability for high flow applications.

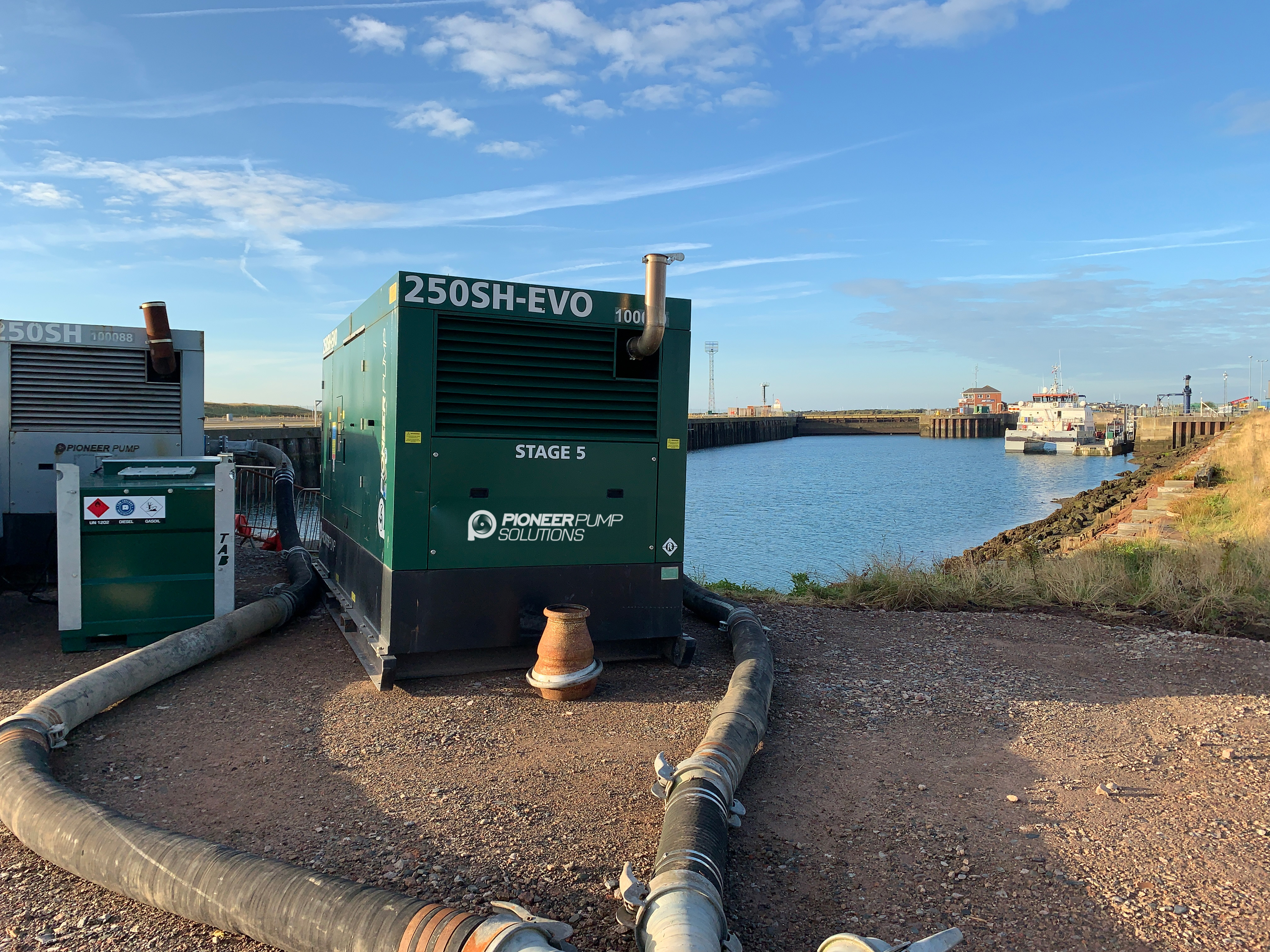

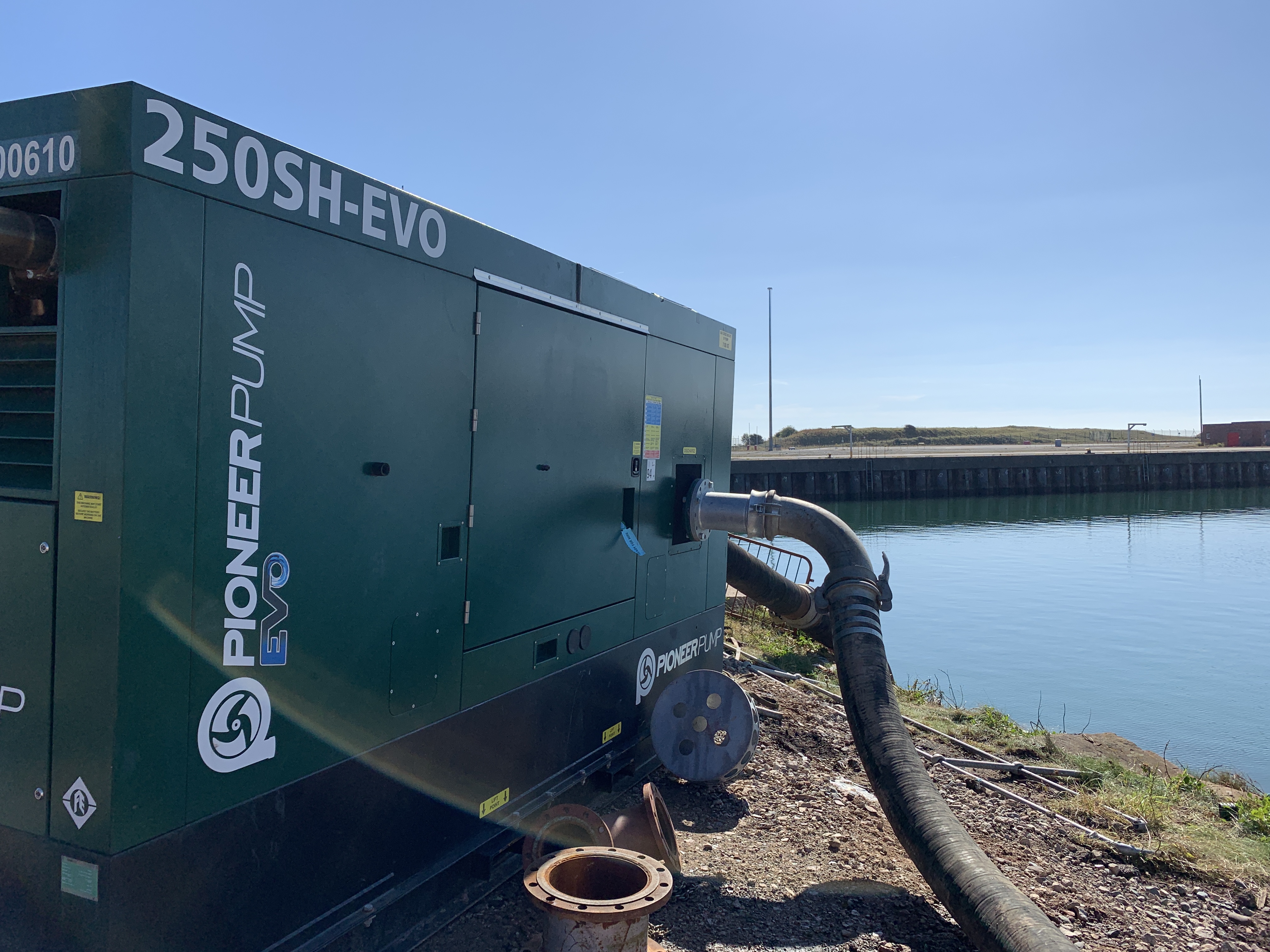

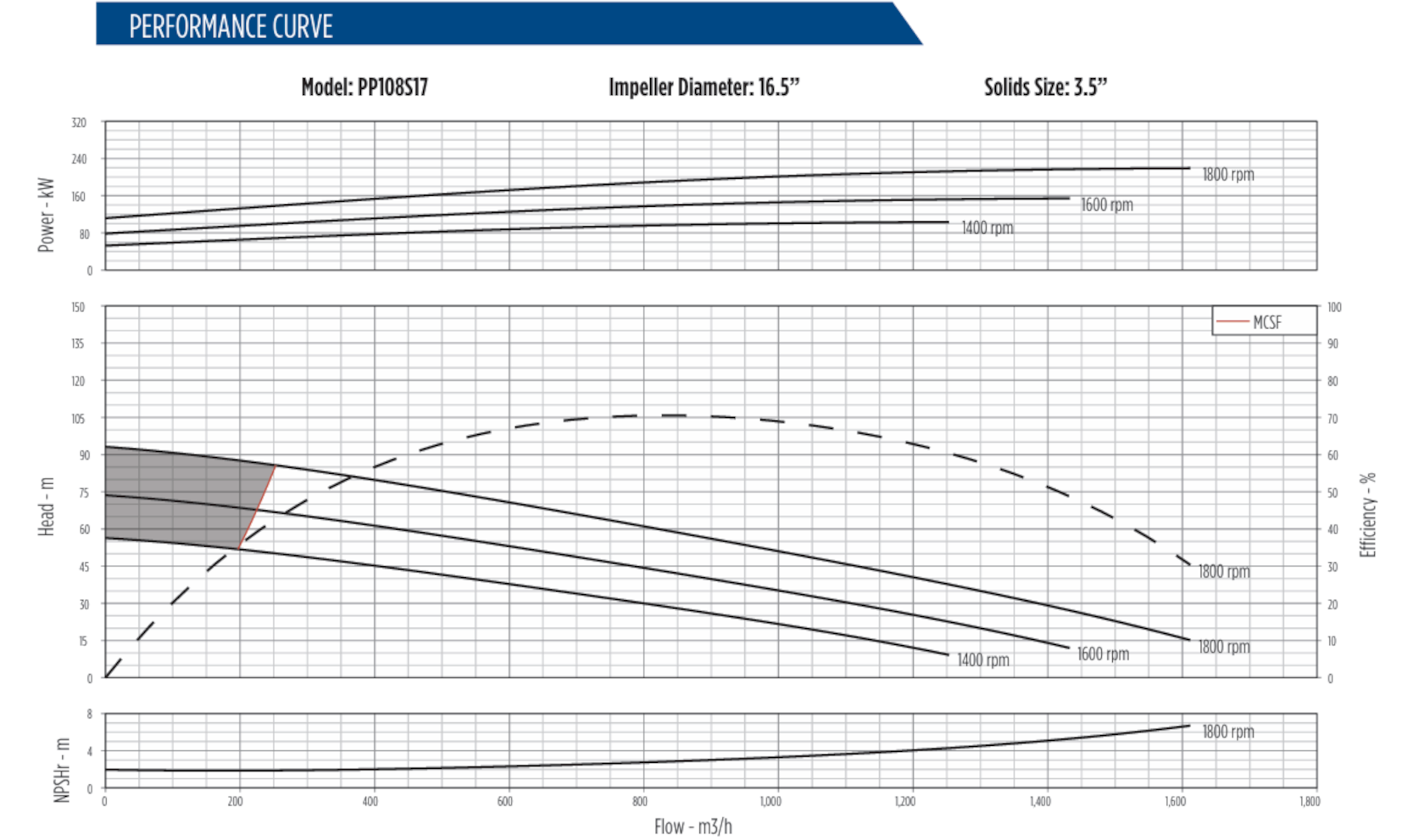

250SH-EVO
A high-flow 10x8" pump moving up to 1600m³/h with 93m head and 3.5" solids handling. It runs on a 311 HP Scania engine, providing excellent solids handling and durability for high flow applications.

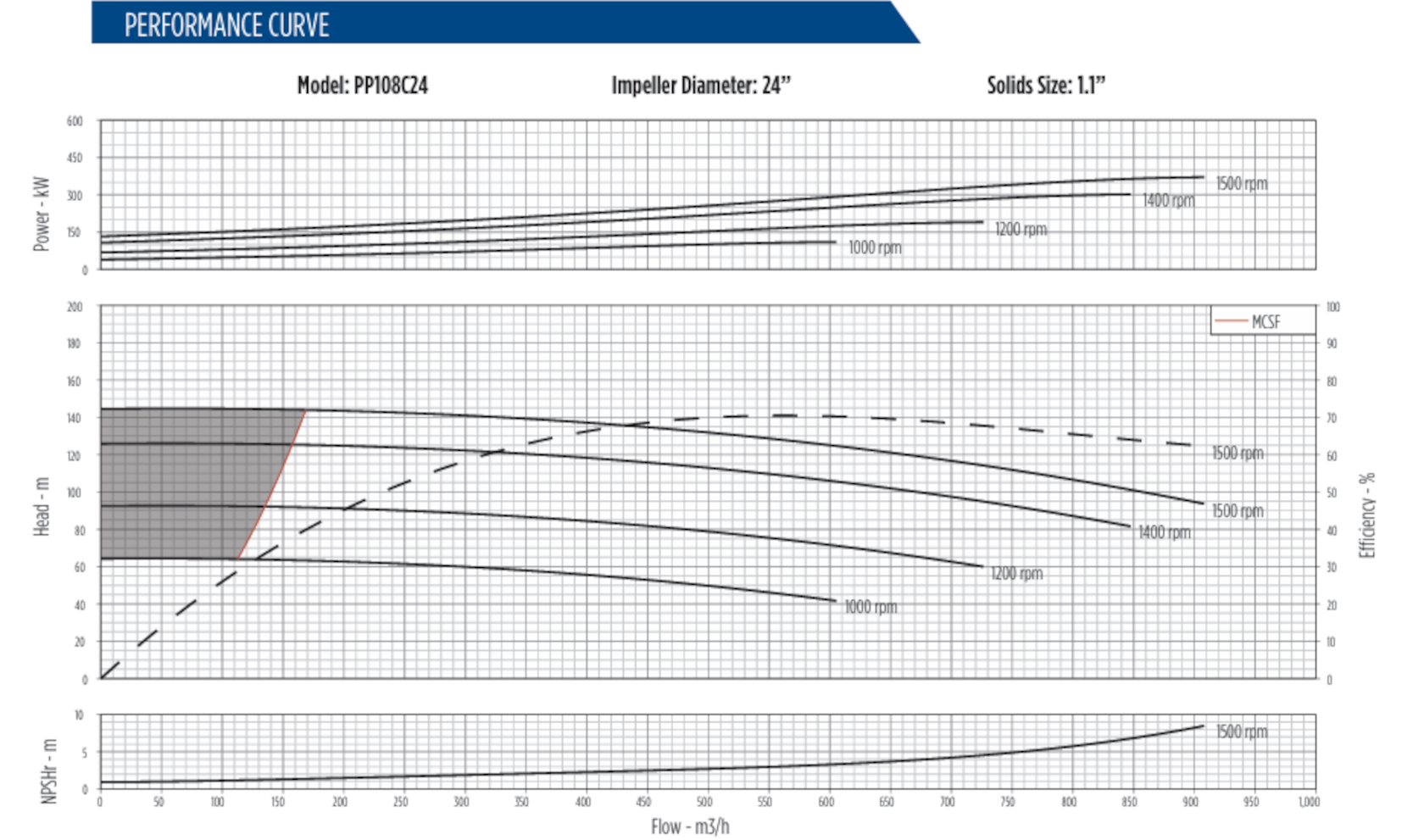

200CX-EVO
A 10x8" pump handles 910m³/h flow and 145m head. Powered by a 543 HP Scania engine, it excels in providing a combination of high flow and high head.
Download the 200CX-EVO Datasheet

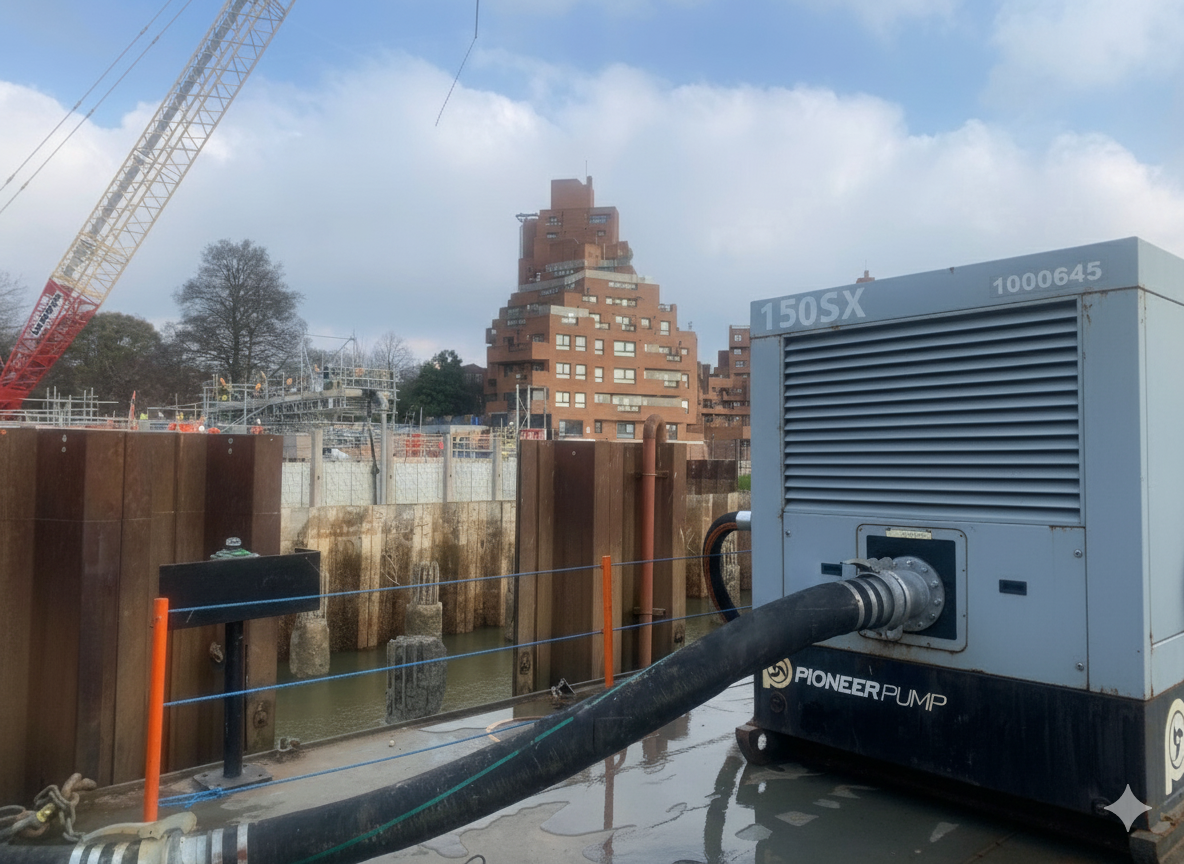

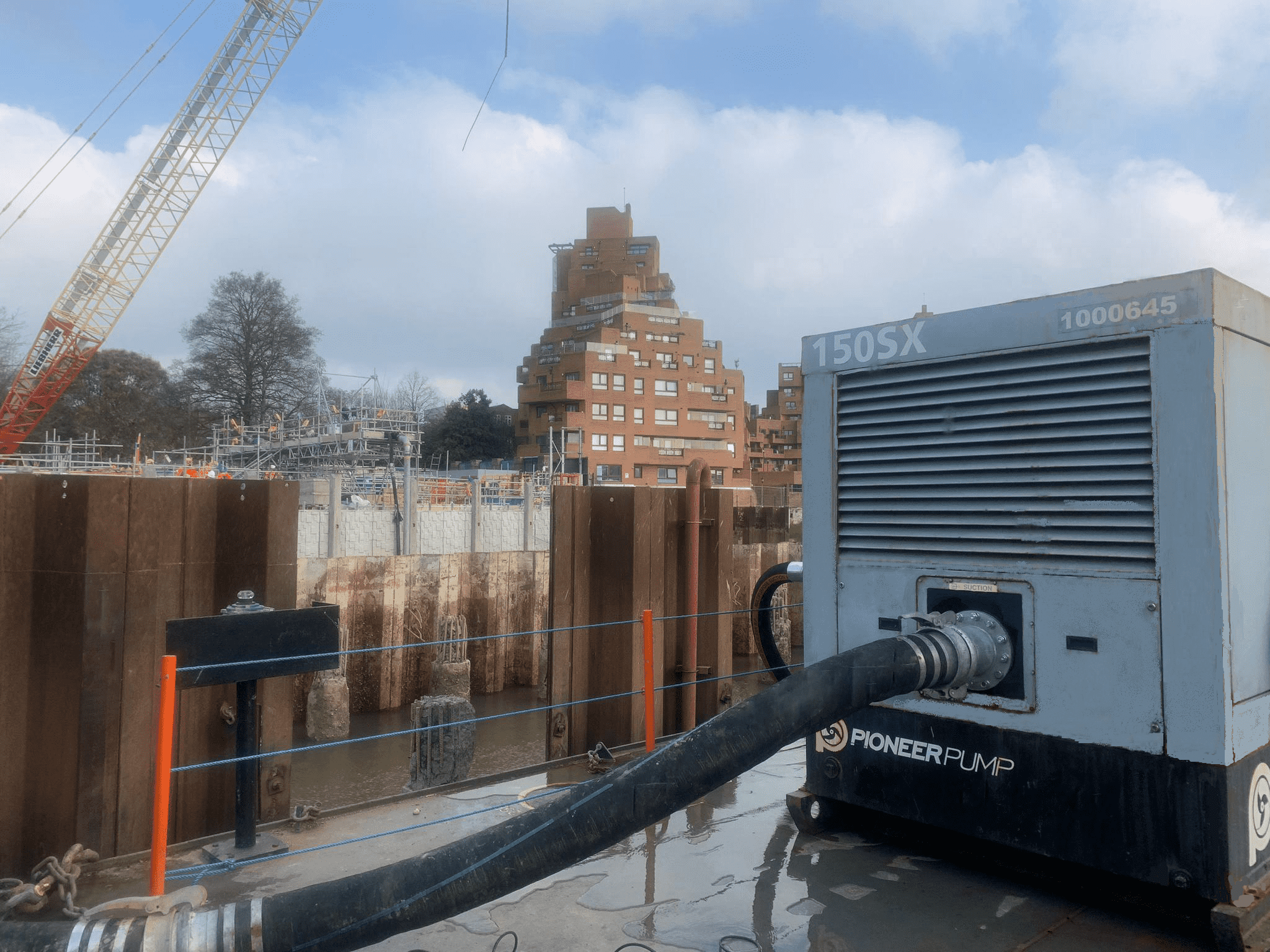

150SX-EVO
This 8x6" high-performance pump handles 910 m³/h and 150m head. Powered by a 543 HP Scania engine, it excels in providing a combination of high flow and high head - as well as high solids handing capability.
Download the 150SX-EVO Datasheet

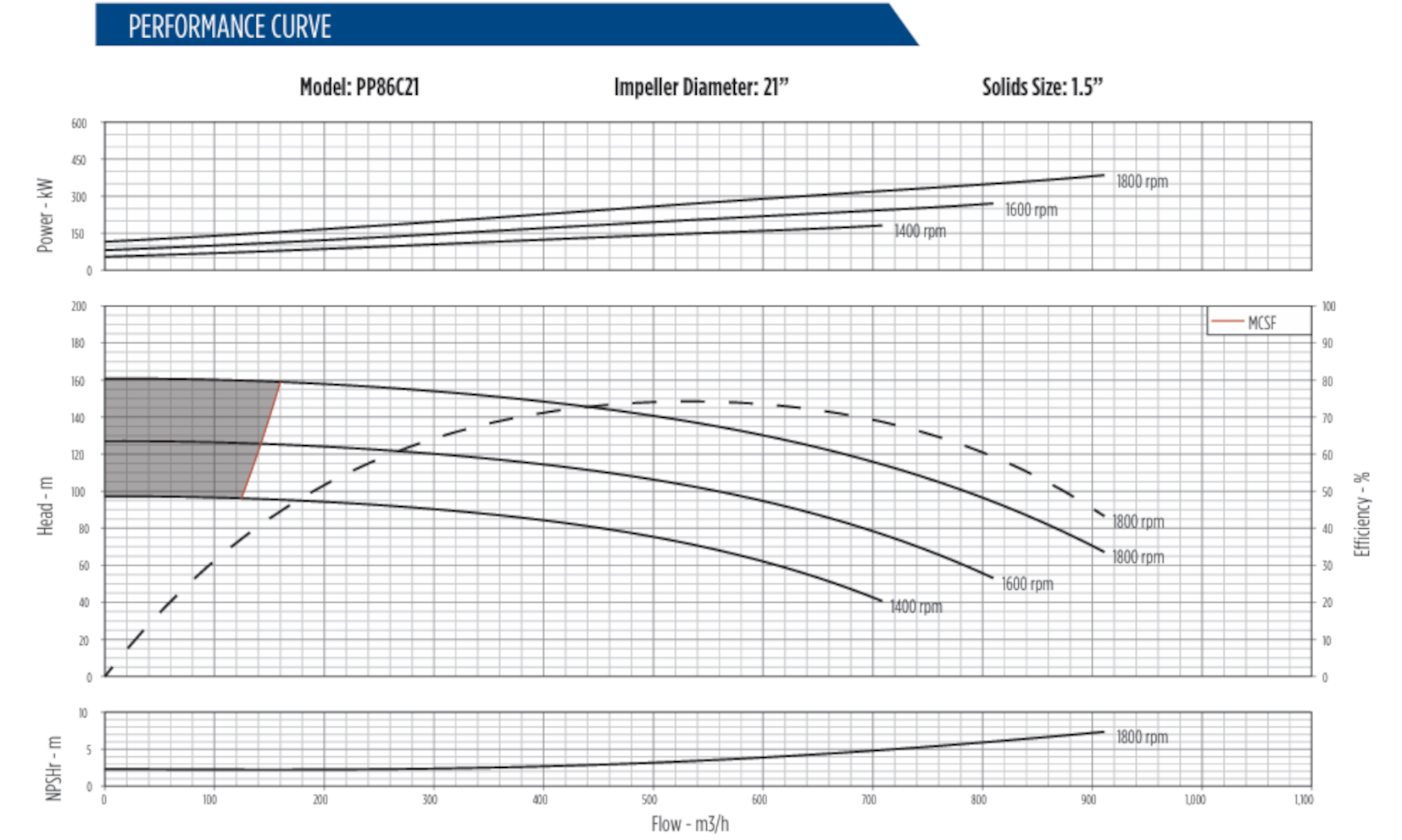

150CX-EVO
An 8x6" pump delivering 1000m³/h and 196m head. It features a Stage V Scania engine and provides extreme high head.
Download the 150CX-EVO Datasheet
Case
Study
The client contacted Pioneer in search of a pump solution capable of producing high pressures in the challenging offshore environment, to assist with a cable-laying project in the English Channel.
The Requirements
The client's plan utilised an ROV operating on the seabed, digging a trench and burying the cable. To accomplish this, they needed a system that could supply a flow of 700 m³/hr at a pressure of up to 16 bar. In the offshore environment, where the cost of failure or delay is significant, reliability was paramount.
The Method

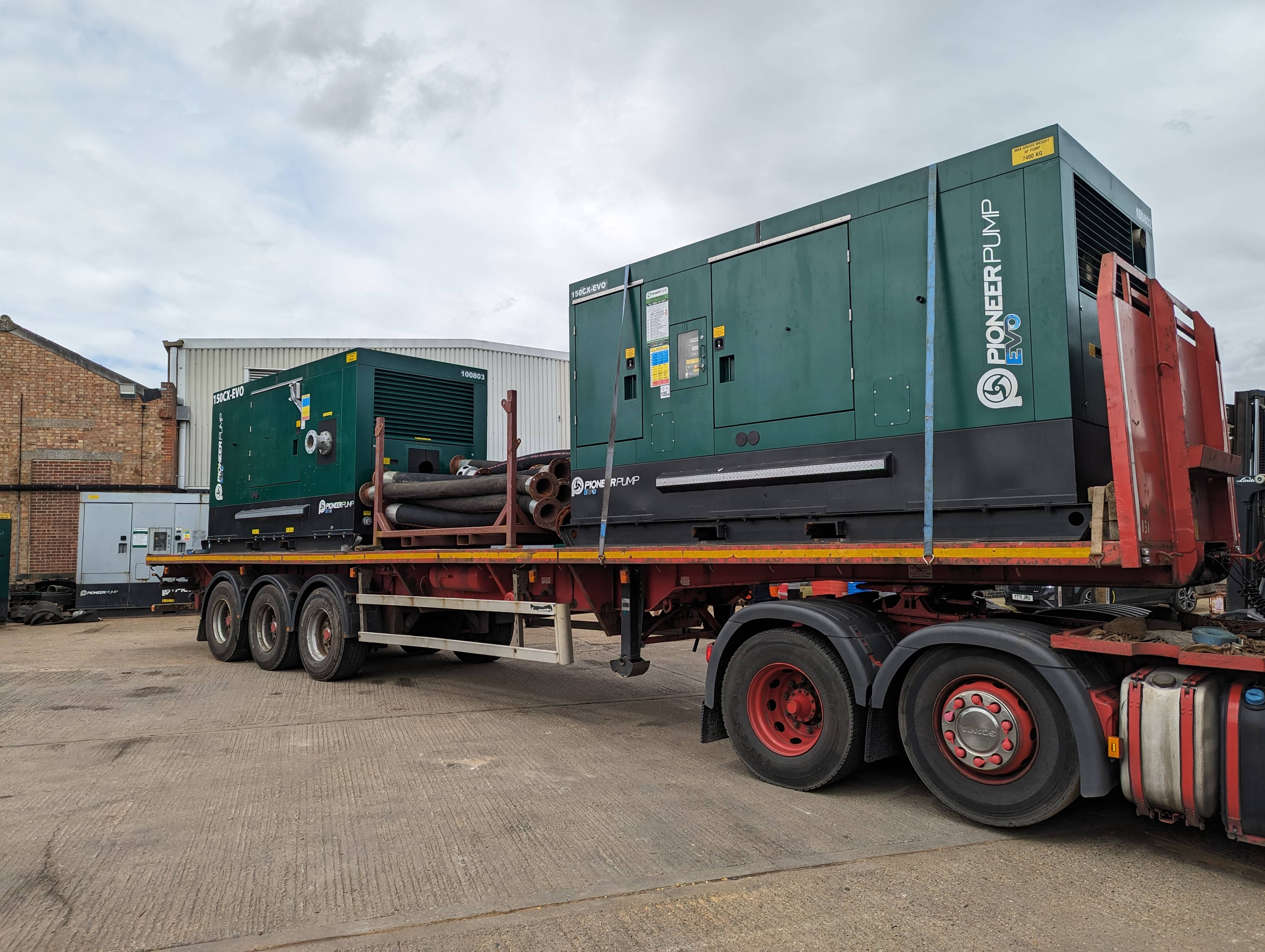

Pioneer supplied 2 x 150CX pumpsets, installed on the vessel in a duty / Standby configuration, with all pipework, valves, and adapters to connect onto the pipe spool. A dedicated communication group was created for the project to ensure constant engineering support, and servicing kits supplied along with the pumps.
Pioneer developed and supplied a specialised secondary E-Stop to cut flow to the ROV, but not the engine. This enabled the engine to perform its cooldown, without risk of damage from a sudden stop. The ability to cut off flow to the ROV is crucial for obstacle avoidance, as it allows the vehicle to stop instantly and prevents it from burying itself in the seabed, which would require recovery.
The Results
Pioneer enabled the customer to complete the project without any downtime, ensuring uninterrupted operations and cost efficiency. In addition, Pioneer’s solution enhanced the safety and reliability of operating the ROV, reducing potential risks for both personnel and equipment.
The customer’s confidence in Pioneer stemmed from the company’s proven track record of success and strong support on previous projects. Leveraging its extensive experience and technical expertise, Pioneer delivered a pump solution that not only maintained the project’s momentum but also provided the assurance of safe, smooth, and efficient performance throughout the operation.
Pump Features
- Auto shut off valves
- Emergency stop
- Supplied with service kits and remote assistance
- High flow and high performance configuration
Performance Details
- Maximum flows of: 700m³/h
- Maximum head of 16 bar
