Fire
Standby
Ensure continous fire protection with our dependable range of Fire Standby pumps.
Pioneer's Fire Standby Pumps can be seamlessly integrated into your existing fire suppression systems. Our extensive fleet of pumps and ancilliaries offer maximum flexibility for every need, as well as automated activation and operation.
Explore our extensive selection of high-flow and high-pressure pumps, engineered to deliver the performance you need when it matters most.
Discover how our tailored solutions can enhance your fire safety strategy.
Key Features
- Programmable automation

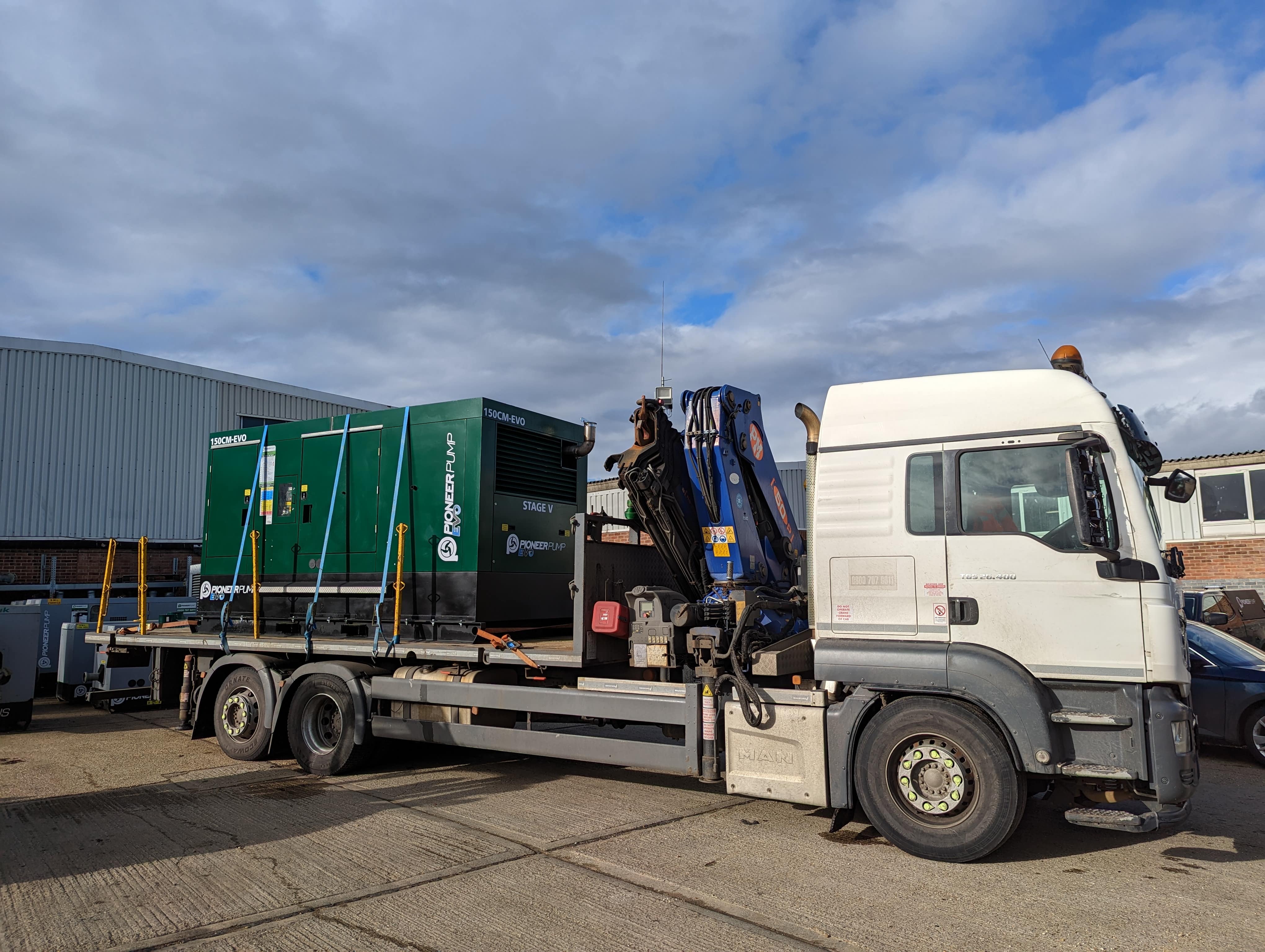

- HIAB Delivery
- 24/7 Remote Telemetry
- Customisable alarms and notifications
- High Flow of up to 833 l/s
- High Pressure up to 20bar
- 3” to 12” pumpsets available
- 24/7 Engineer Call Out Service
Typical
Datasheets
These datasheets represent a selection of our commonly requested fire safety equipment and are intended to provide a general overview of what we offer.
This is not an exhaustive list - our full product range includes additional models and configurations to suit a variety of requirements.
DOWNLOAD THE DATASHEETS FOR MORE INFORMATION ON OUR PRODUCTS
80CH-EVO
A compact 6x3" centrifugal pump delivering up to 68 l/s and 12bar. It features self- priming, indefinite run-dry capability, and remote monitoring.

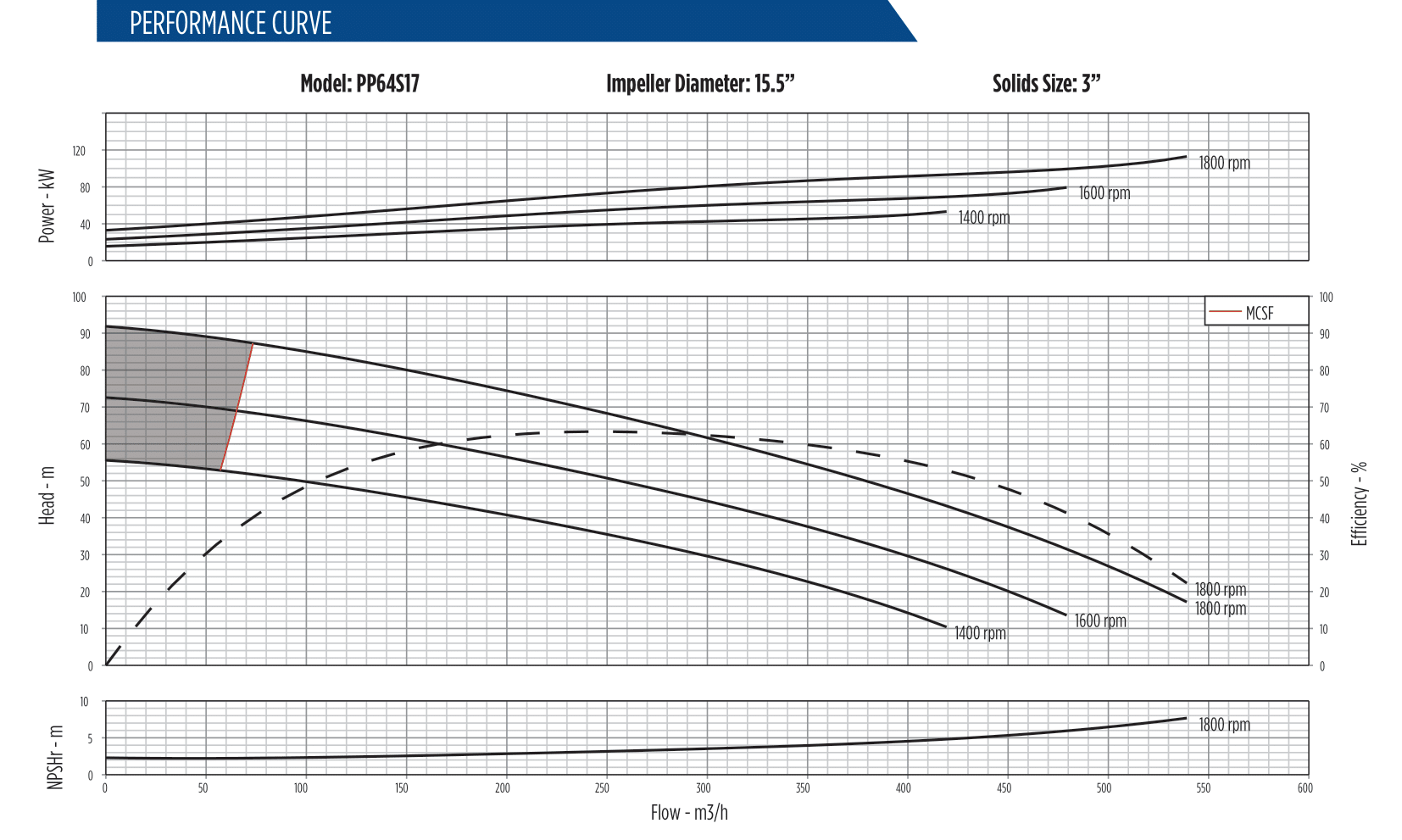

100SH-EVO
A 6"x4" diesel-driven centrifugal pump with a 150 l/s max flow and 9bar head. It features self- priming, indefinite run-dry capability, and remote monitoring.
Download the 100SH-EVO Datasheet

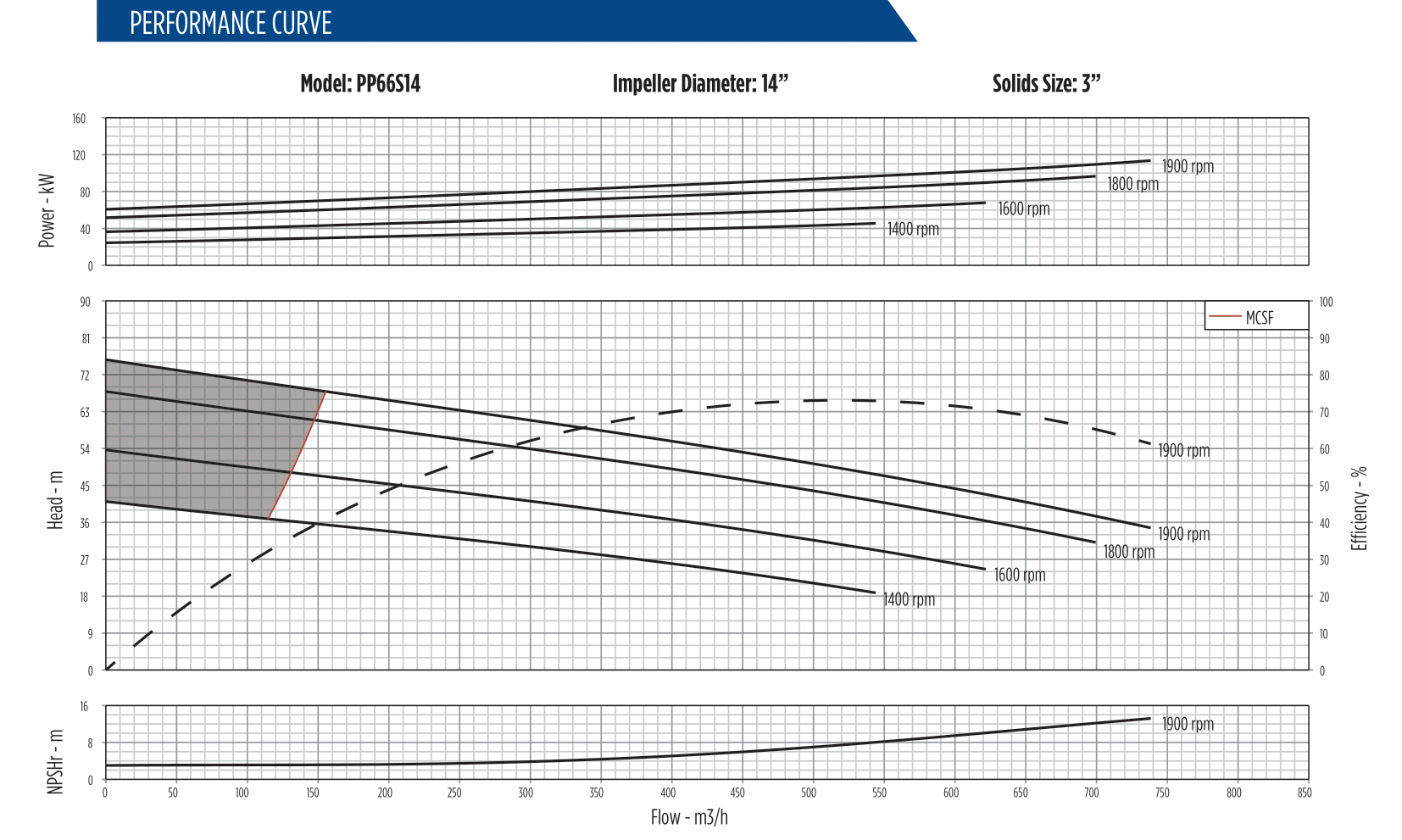

150SMS-EVO
This 6"x6" pump delivers up to 205 l/s flow and 7.5bar head. It features self- priming, indefinite run-dry capability, and remote monitoring.
Download the 150SMS-EVO Datasheet
150SX-EVO
This 8"x6" high-performance pump handles 252 l/s and 15bar head. It features self- priming, indefinite run-dry capability, and remote monitoring.
Download the 150SX-EVO Datasheet

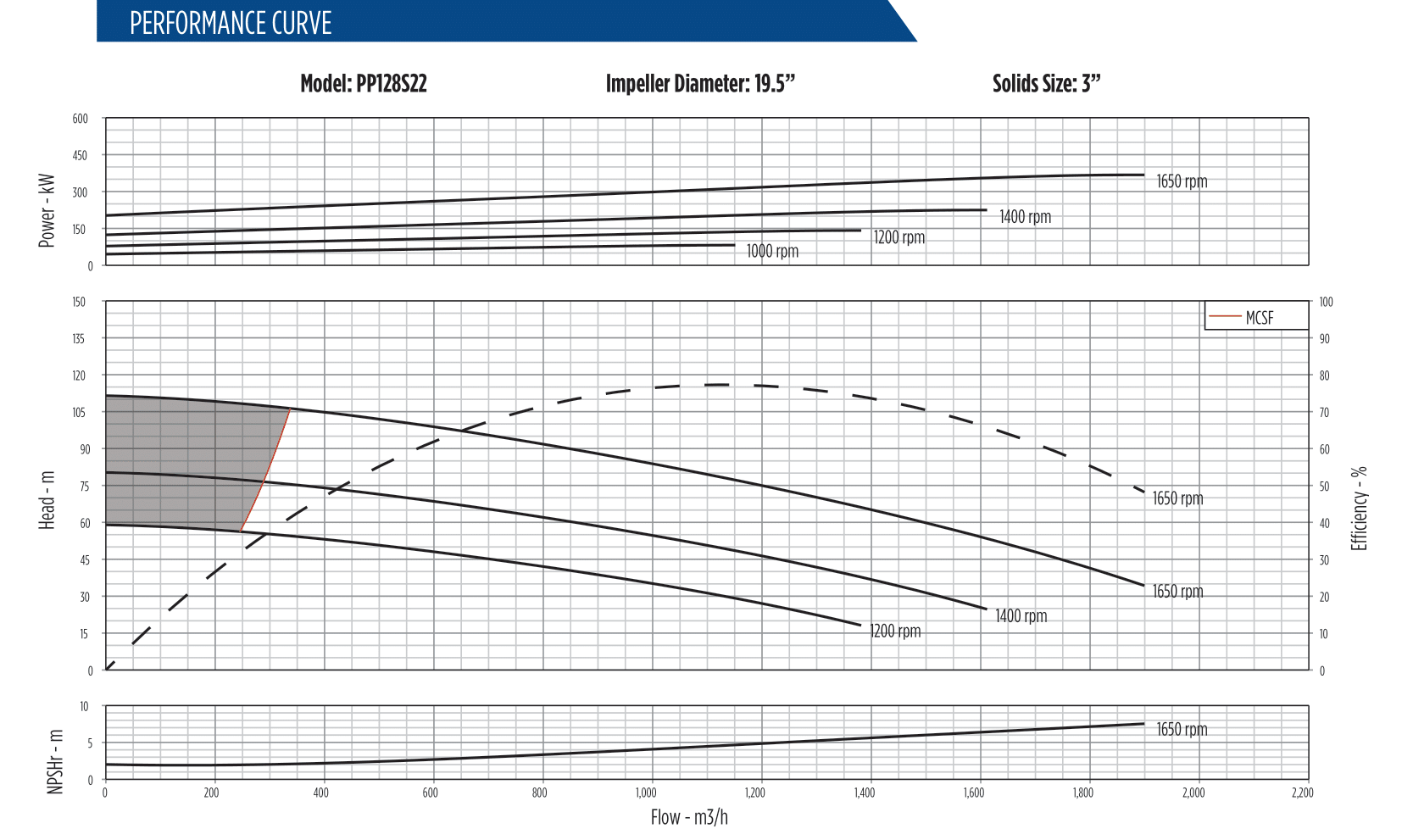

200SX-EVO
A powerful 12x8" pump pushing 527 l/s at 11.2bar head. It features self- priming, indefinite run-dry capability, and remote monitoring.
Download the 200SX-EVO Datasheet
Case
Study

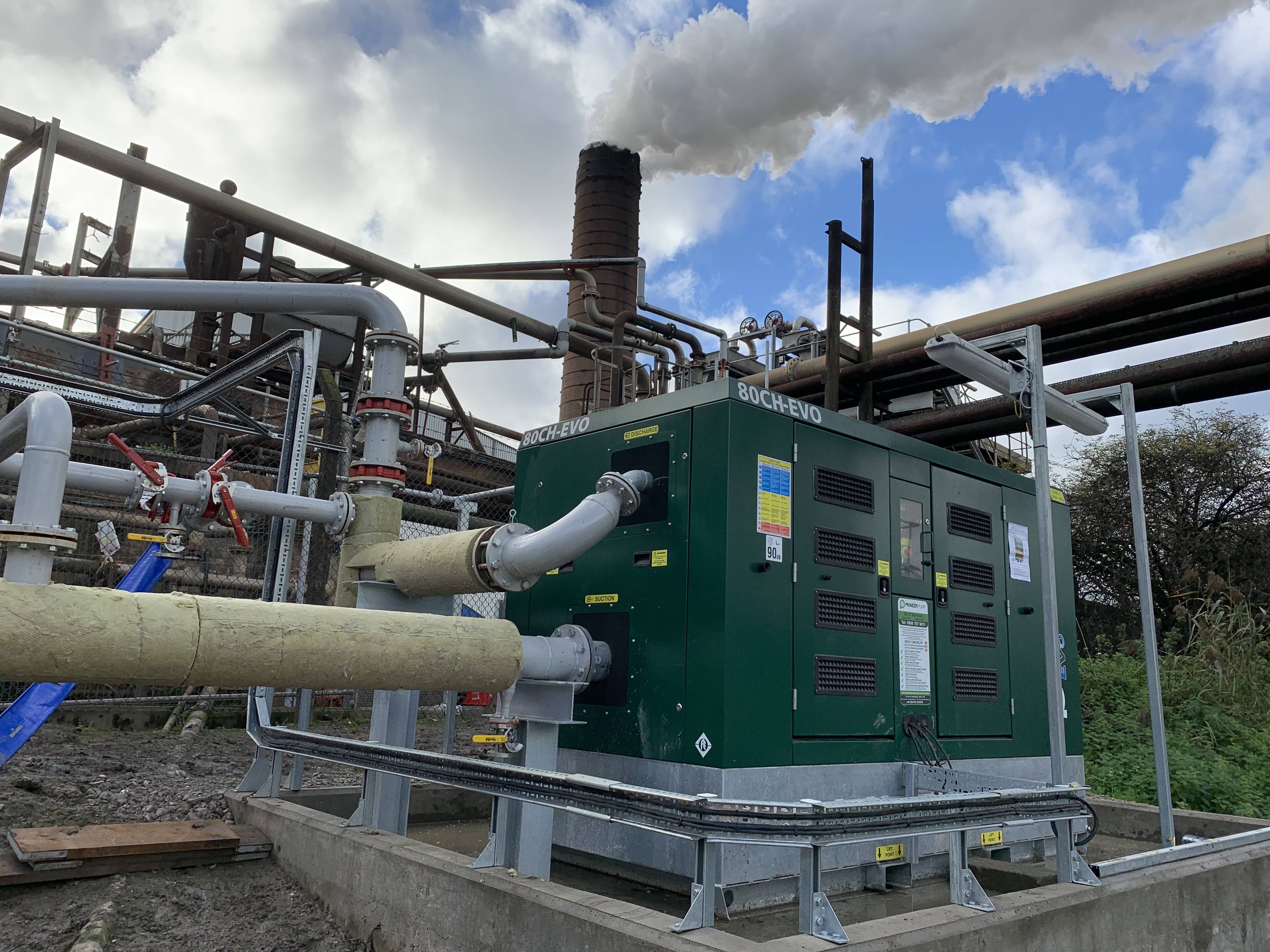

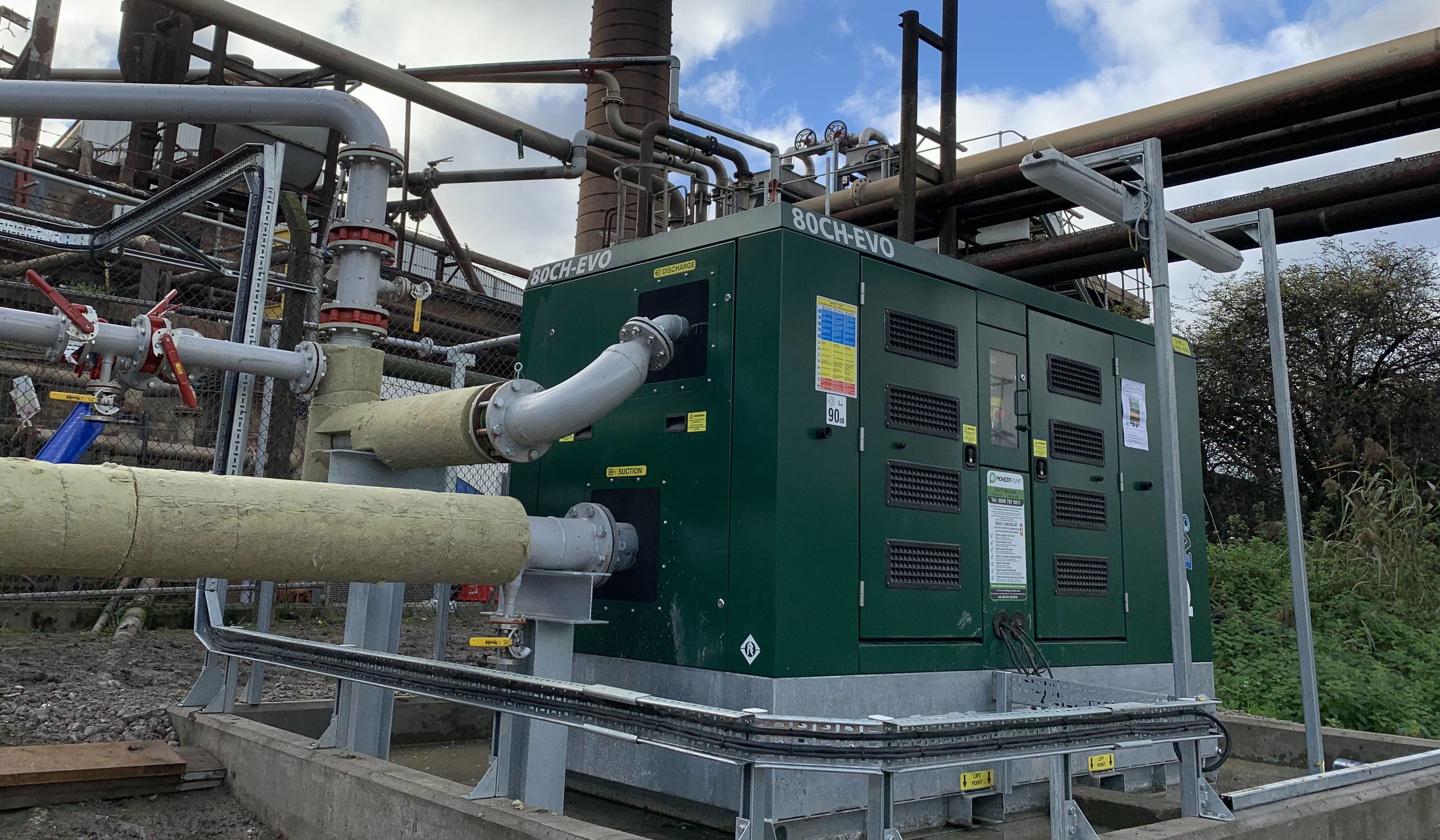

UK Steel Works Fire Standby Case Study
The client, a large steel works company based in Wales, contacted Pioneer to design and supply a duty and back-up pump solution capabable of maintaining the client’s fire main system during critical maintenance.
The Requirements
Due to the nature of the application, the client required a high pressure pumpset capable of maintaining their fire system’s water pressure in the event of a fire during the maintenance works for a blast furnace. The pumps were to operate both as the main duty pump and back-up pumps as reliability was vital to the operation.
The Method
After a survey of the site, Pioneer specified the 80CH, a 3” super silenced high pressure diesel pumpset as the performance curves perfectly matched the requirements the client had stipulated.
The pumps were fitted with Deep Sea E400 Engine Controllers complete with a Telemetry Module.
Pressure transducers in the discharge line sent a signal (4-20mA) to the control panel, enabling Pioneer to sequence the pumps to start and stop at the pre-determined pressure levels requested by the client.
The Telemetry Module fitted to each of the engine controllers is capable of sending SMS alerts in case of engine start, stop, failure, or a catastrophic pressure drop in the line. This method also allowed all stakeholders to see a live dashboard of the pump's performance.
The Results
Following installation, the client reported that the system worked perfectly and exceeded all expectations, with daily reports and live notifications on the status of the pumpsets.
Pioneer’s team of specialist design engineers were congratulated on the design of the system which was commissioned and operational within the tight time scale requested by the client.
Since the completion of the works, the 80CH 3” High Pressure pumpset has become a staple pumpset used by numerous large industrial facilities as fire standby pumps, praised for it’s high performance and reliability.
Telemetry modules are available on all Pioneer pumpsets allowing the client to remotely operate their pumpsets and carry out status reporting.
Pump Features
- Telemetry modules installed to allow for remote access and control
- Pressure transducers installed to automatically activate pumps at pre-determined pressure levels
Performance Details
- Standard Max Flow: 68 l/s
- Close Valve Head: 12 bar
